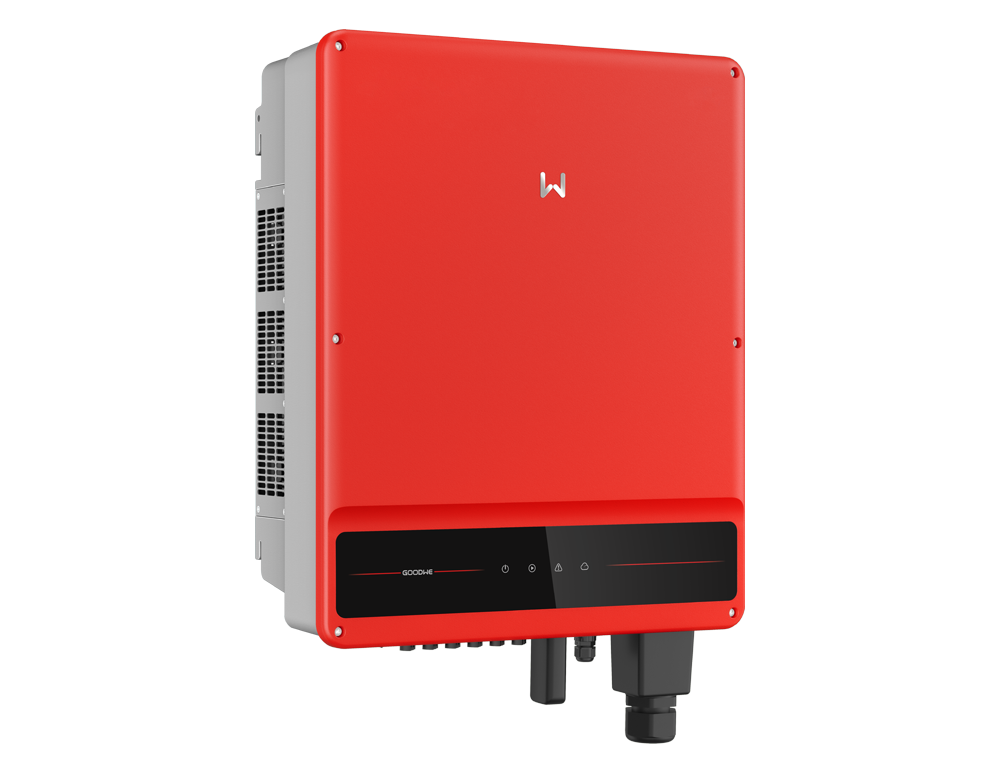

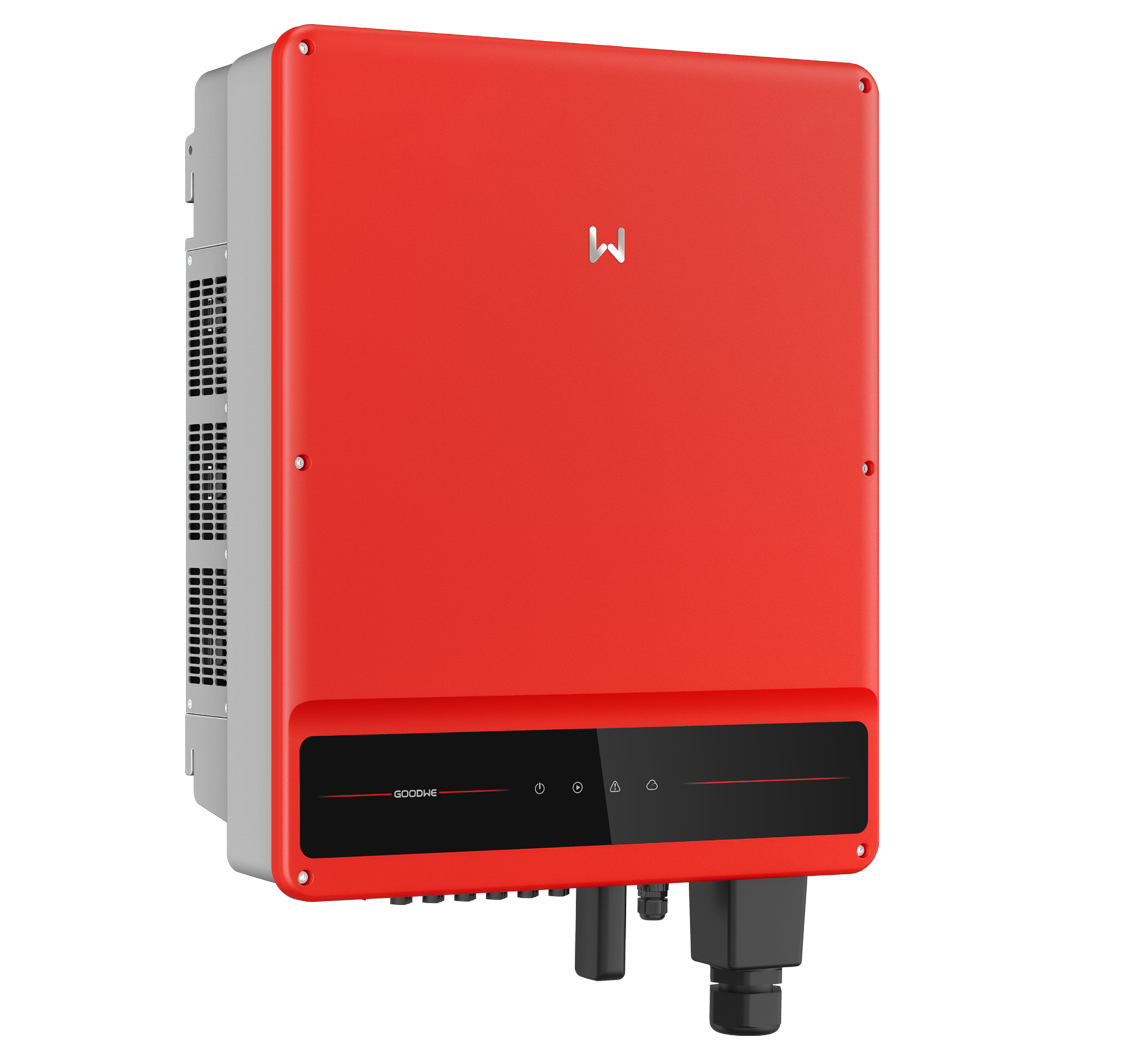

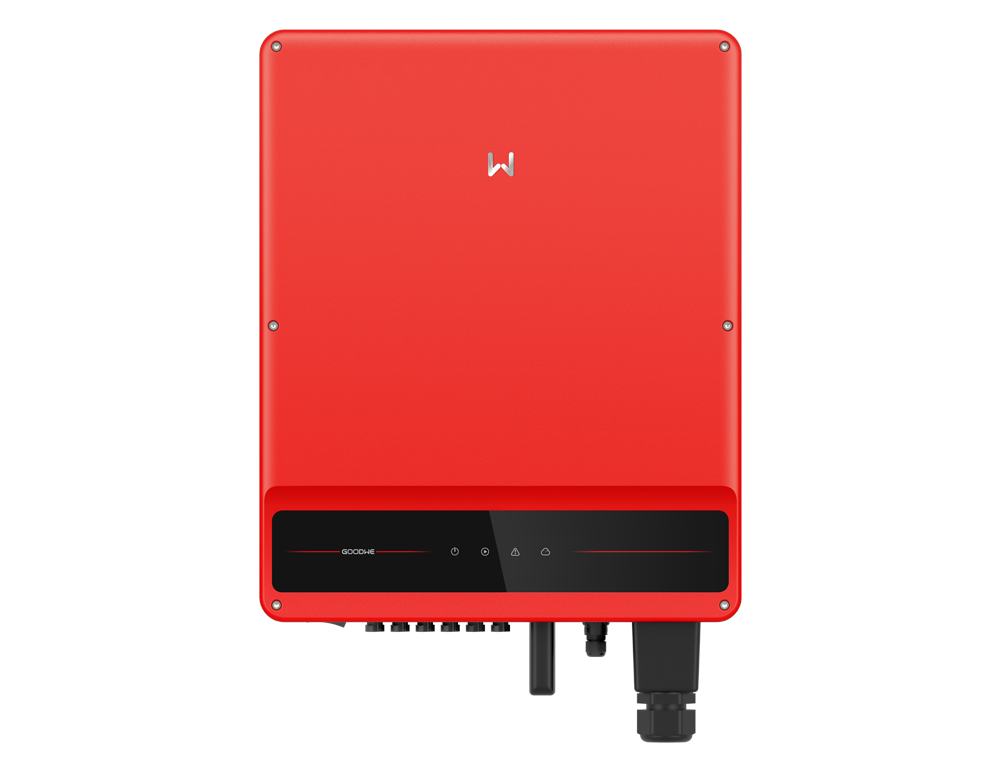

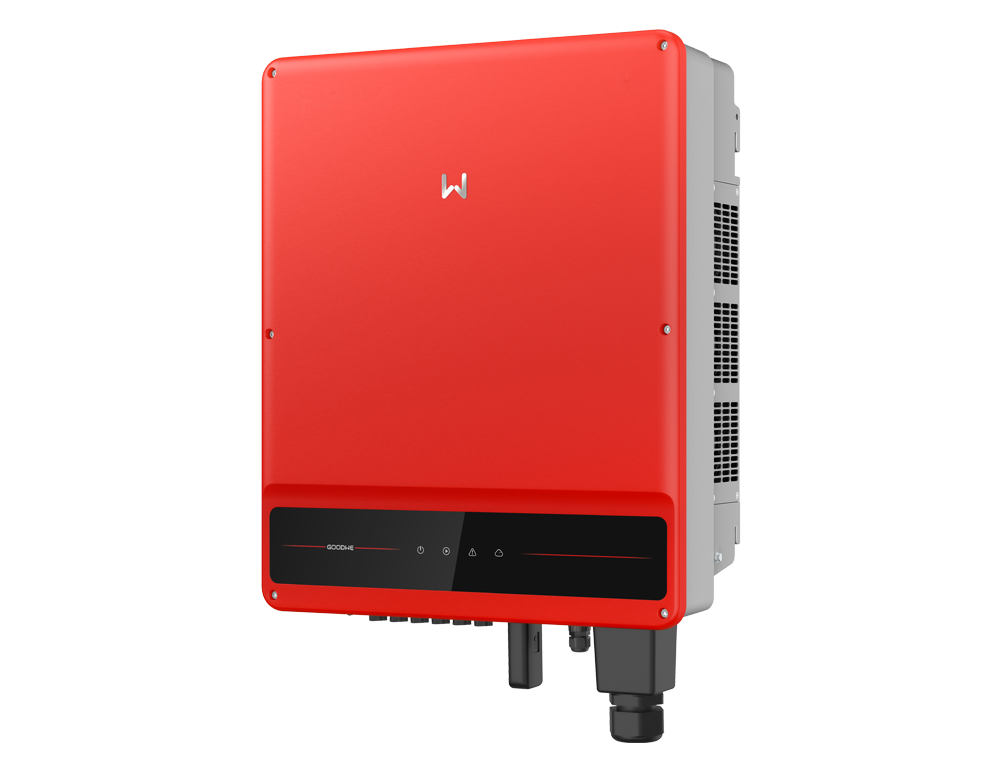

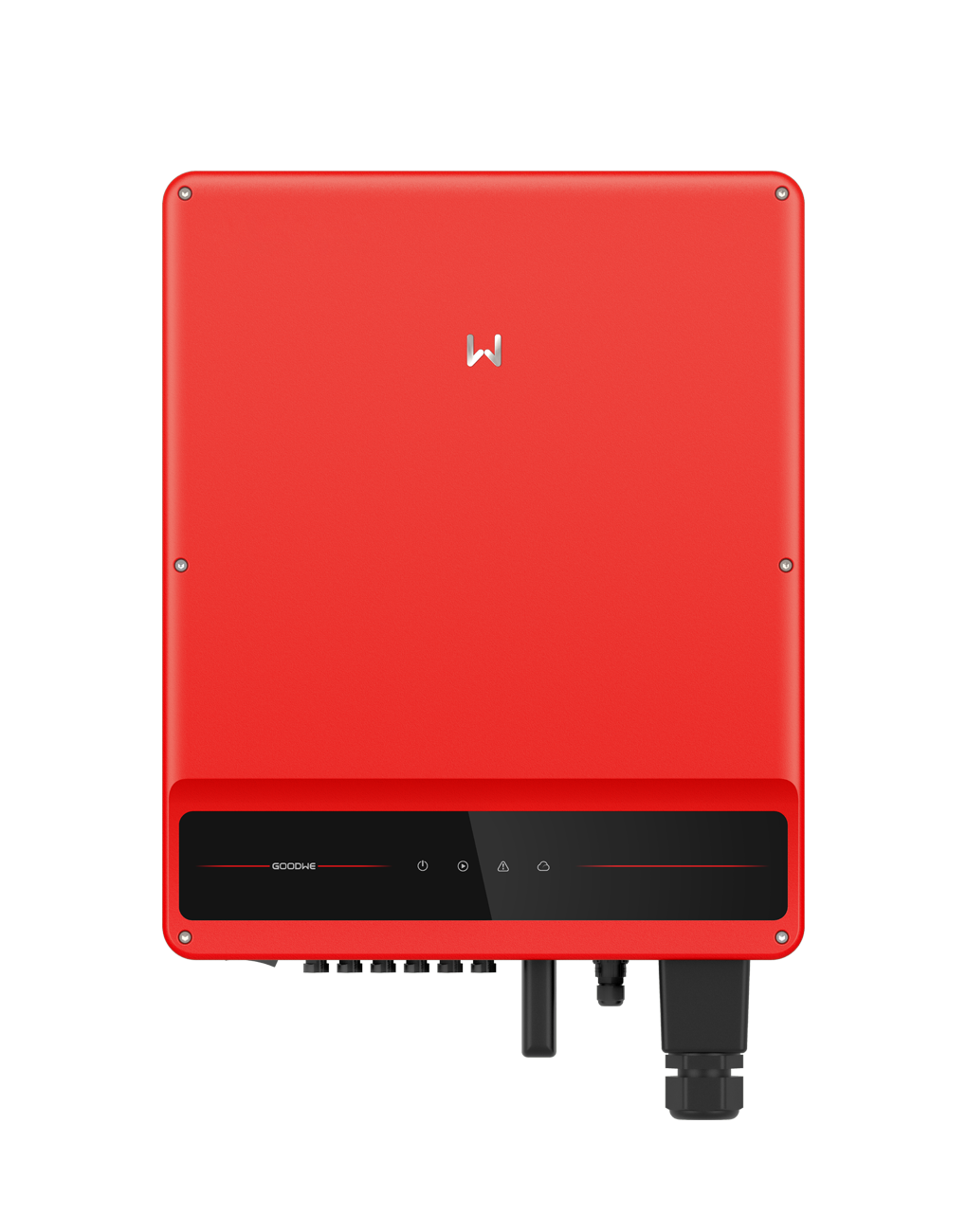

GoodWe's LVSMT series three-phase inverter is designed with low voltage power input, specifically tailored to small commercial PV applications. Developed as an efficient response to South American market needs for low-voltage inverters above 10 kW, the GoodWe LVSMT series is applicable to the different grid voltage ranges in the region, which mainly cover 208 V, 220 V and 240 V. With the GoodWe LVSMT series inverter, the system configuration can be simplified by avoiding the installation of an expensive transformer which adversely affects the system’s conversion efficiency.
Max. efficiency up to 98.8%
Full-load running at 50°C
String level monitoring
130% DC input oversizing
110% AC output overloading
PLC Communication
Low voltage
Latin
98.8%
undefined
undefined
undefined
200V-950V Wide MPPT Volatge Range
Wide MPPT Range enables the solar system to start at an early stage, fully utilising the daytime to maximise solar powered energy generation, giving the highest yield.
Compatitable with High Power Module
LVSMT is designed to meet the increasing demand for 182 mm and 210 mm high power modules. With large current input and 130% DC oversizing and 110% AC overloading capacity, the system efficiency is enormously enhanced.
DC input current 15A
130% DC input oversizing
110% AC output overloading
OVERZICHT
Model
GW12KLV-MT
Max. ingangsspanning (V)
800
Max. ingangsstroom per MPPT (A)
30
Aantal MPPT's/Aantal strings per MPPT
2/2/2
Max. rendement
12
Nominale uitgangsspanning (V)
220V,3L/PE
Model
GW15KLV-MT
Max. ingangsspanning (V)
800
Max. ingangsstroom per MPPT (A)
30
Aantal MPPT's/Aantal strings per MPPT
2/2/2
Max. rendement
15
Nominale uitgangsspanning (V)
220V,3L/PE
Model
GW20KLV-MT
Max. ingangsspanning (V)
800
Max. ingangsstroom per MPPT (A)
30
Aantal MPPT's/Aantal strings per MPPT
2/2/2
Max. rendement
20.7
Nominale uitgangsspanning (V)
220V,3L/PE
