BTC Series

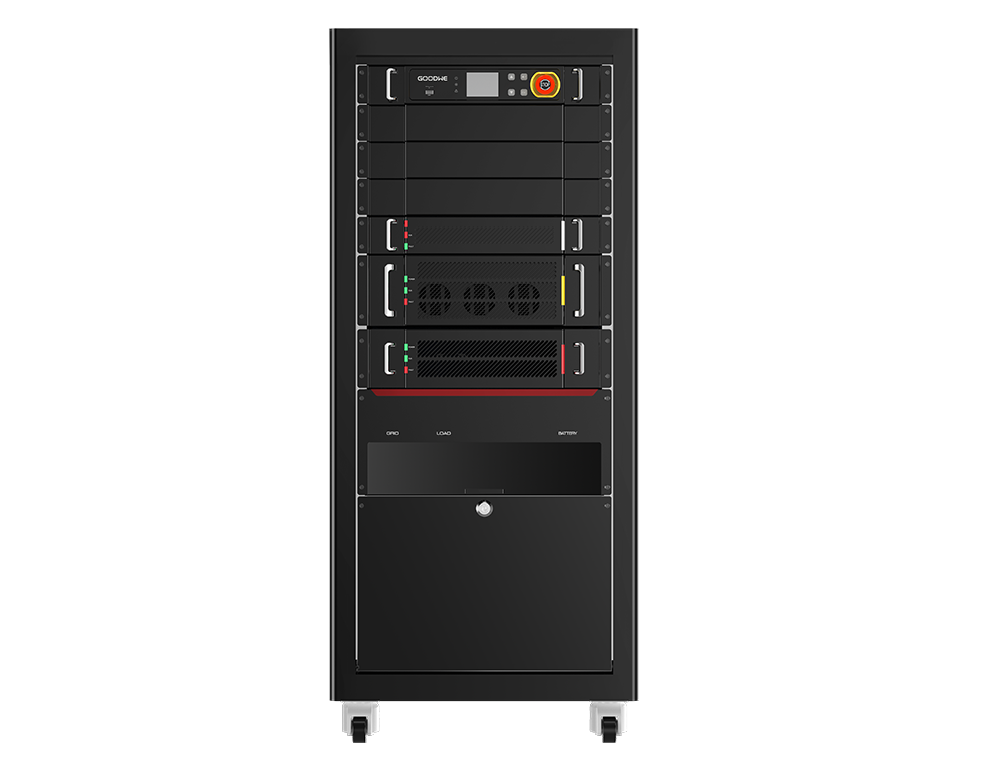

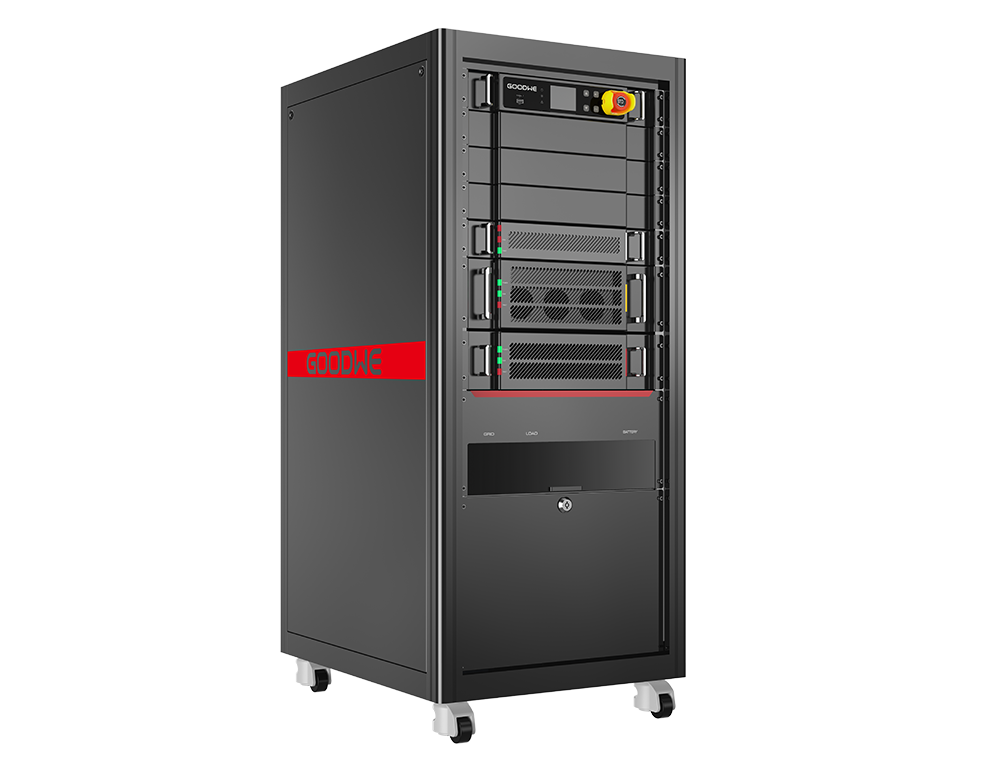

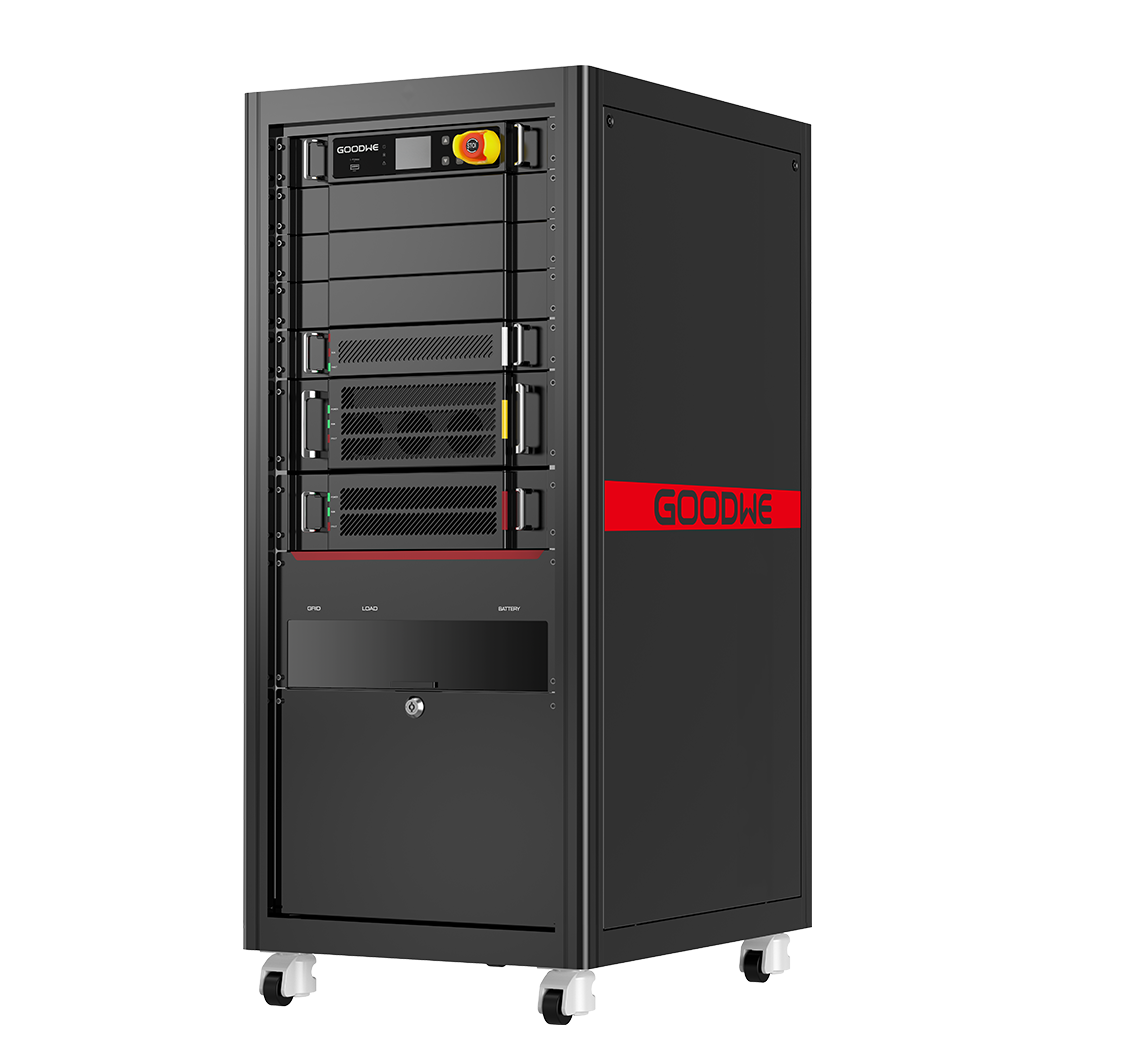

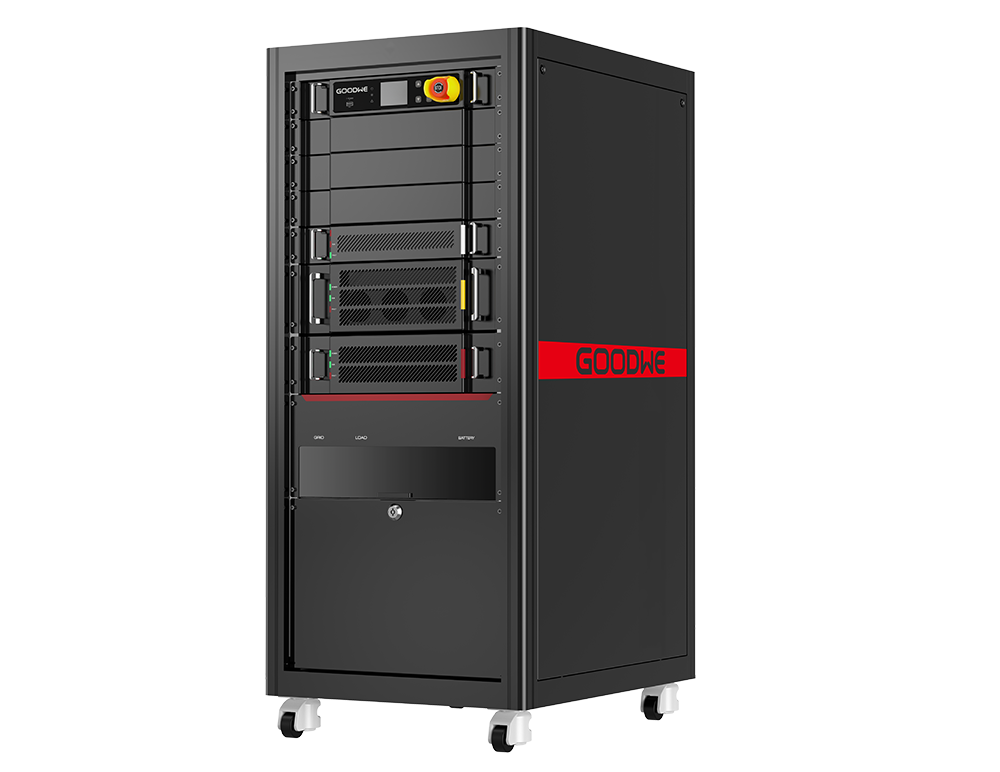

50 kW | Three phase | AC-coupled retrofit inverter (HV)
DOWNLOAD PDF >>
100% unbalanced
UPS-level switching
undefined
undefined
GoodWe BTC Series is a three-phase, AC retrofit inverter suitable for distributed PV systems and can be connected with high-voltage batteries ranging from 200 to 865V. Its simple and Plug & Play modular design consisting of four sections (DC/DC, DC/AC, STS & EMS modules). It can switch to backup mode in less than 10ms and ensures continuous power supply for critical loads. It does not require perfect balance when operating in backup mode, allowing for each phase to supply power to the loads individually. The active, reactive power and power factor of this inverter is fully adjustable, which makes it suitable for application on micro-grids and ensures grid stability for the whole PV system. It offers 110% continuous AC overloading on the backup side for maximum power output and remote shutdown function for system safety.
Modularized design
<10 ms UPS-level switching
100% unbalanced load
Adjustable active, reactive power and power factor
100% unbalanced
UPS-level switching
undefined
undefined
<10 ms UPS-level switching
Ensure continuous power supply
200-865V Wide Battery Voltage Range
Compatible with various high voltage batteries and offers flexibility and affordability to fulfill various customer demands.
OVERZICHT
Model
GW50K-BTC
Accuspanningsbereik (V)
200~865
Max. continu laadstroom / ontlaadstroom (A)
100/100
Nominale uitgangsspanning (V)
400, 3L / N / PE
Max. schijnbaar uitgangsvermogen naar het openbaar net (VA)
52500
Back-up nominaal schijnbaar vermogen (VA)
50000
